Ready to get started? make sure to follow these steps

In order to get started with the lessons, you need to prepare your Chromebook so that it can interact with the Arduino board.  All you will need is the Johnny-Five Google App installed.  This app will allow you to write JavaScript programs that will send all the commands to the Arduino board using the USB port.

A known issue with some Chromebooks

Some Chromebooks will not work with the installed Firmata (See step 11).  You may have to install the Arduino Firmata sketch on your Arduino board using a PC or a Mac computer instead.  Replace Step 11 below with the steps for your PC or for your Mac.

Have questions or need help?

If you have questions or if something is not clear, send us a note using this form


Let's get started

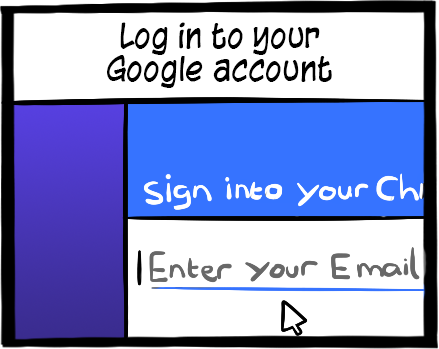

1. Log in

 In order to use your Chromebook you need a Google account and log into it.  Use your gmail account and password.

In order to use your Chromebook you need a Google account and log into it.  Use your gmail account and password.

2. App Launcher

 You can add native apps on your Chromebooks.  Click on the App Launcher to start it and look for Johnny-Five.

You can add native apps on your Chromebooks.  Click on the App Launcher to start it and look for Johnny-Five.

3. Search

 In the search bar, look for the Johnny-Five app.

In the search bar, look for the Johnny-Five app.



4. Find Johnny-Five

 Find the Johnny-five app in the list

Find the Johnny-five app in the list

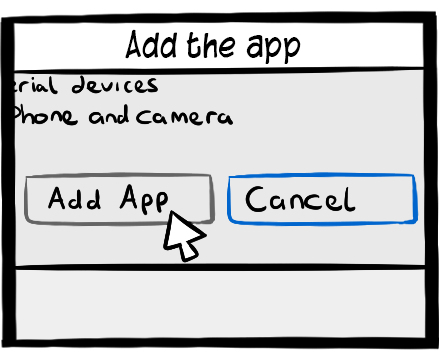

5. Add Johnny-Five

 Click Add App to install it.

Click Add App to install it.

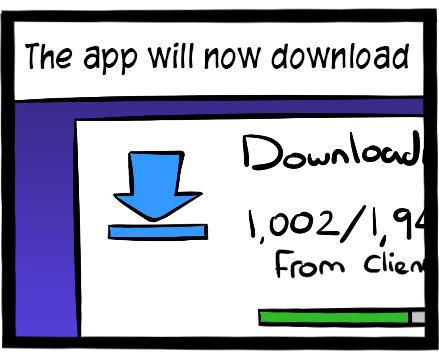

6. Install

 The app should be downloading.

The app should be downloading.

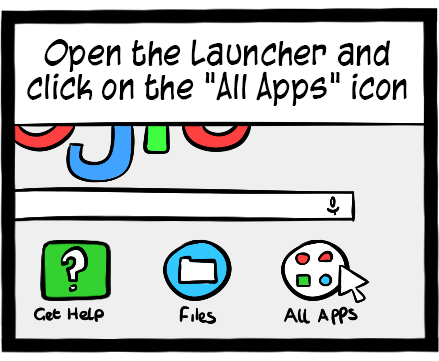

7. All Apps

 Click the "All Apps" icon

Click the "All Apps" icon

8. Select Johnny-Five

 Make sure your Arduino is plugged in.  Double click on Johnny-Five

Make sure your Arduino is plugged in.  Double click on Johnny-Five

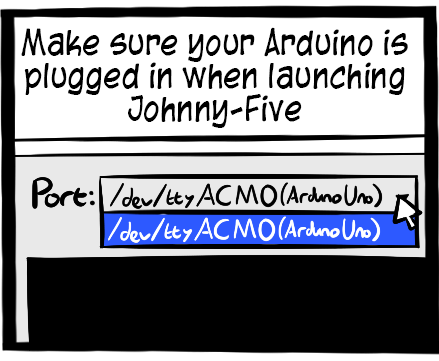

9. Find Arduino

 Your Arduino board should be shown in the device list.

Your Arduino board should be shown in the device list.



10. Refresh

11. Firmata

12. Run!

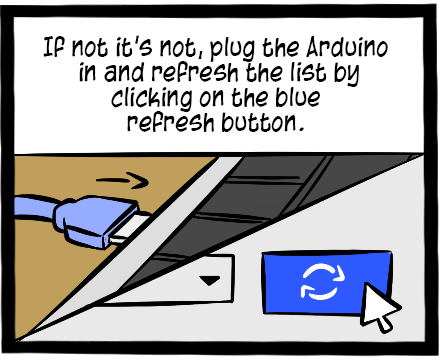

 If you plug your Arduino after launching Johnny-Five, click refresh to find the board.

If you plug your Arduino after launching Johnny-Five, click refresh to find the board.

 Install the Firmata software on the Arduino.  This is only necessary once on new Arduino boards.  *Some older models will not install Firmata correctly .  Check the bottom of the page for more information.

Install the Firmata software on the Arduino.  This is only necessary once on new Arduino boards. *Some older models will not install Firmata correctly.  Check the bottom of the page for more information.

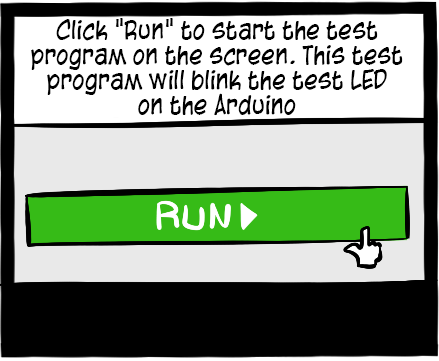

 Write the code of your lessons in the program space and click "Run" to execute your program.

Write the code of your lessons in the program space and click "Run" to execute your program.



13. Your Log

 At the bottom of the application you will find the log.  It will list everything that happens, including any error messages in red.  Pay attention to these as they contain messages about the error and what you need to fix.  It will also contain the output of your "console.log()" commands.

At the bottom of the application you will find the log.  It will list everything that happens, including any error messages in red.  Pay attention to these as they contain messages about the error and what you need to fix.  It will also contain the output of your "console.log()" commands.

14. Yeah!

 Congratulations!  You did it.

Congratulations!  You did it.



Getting some Timeout Errors?

Some older Chromebooks models are not able to install the Firmata software on the Arduino correctly, thus making the JavaScript sketch not working.  You may receive an error message saying that there was a timeout trying to connect to the Arduino board.  Unfortunately, we have not found a workaround for these cases without using a PC or Mac for the install.  Should you run into this issue, follow the steps outlined in PodPi Volume 0 (Page 9) on how to download the Arduino IDE and upload the Firmata sketch on your Arduino board.  This step will only be required once and your Arduino boards will be ready to work with your Chromebooks.

Click Support and contact us should you have any further questions or issues.
